Grooved Wooden Acoustic Wall Cladding For Auditorium
Product Details:
| Place of Origin: | China |
| Brand Name: | SOUNDWIN |
| Model Number: | SWPF-003 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Square meters |
|---|---|
| Price: | USD7-25 per square meter |
| Packaging Details: | Export cartons |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T |
| Supply Ability: | 500000 square meters per year |
|
Detail Information |
|||
| Sound Absorption Coefficient: | 0.72 | Product Item: | 28-4, 13-3, 14-2 |
|---|---|---|---|
| Surface Finish: | Melamine, HPL, Veneer, Painted | Thickness: | 12, 15, 18mm |
| Material: | MDF Or MGO Board | Fire Rating: | Class B1 |
| Application: | Commercial Buildings, Offices, Auditoriums | Installation Method: | Ceiling Or Wall Mounted |
| Size: | 2440*133mm/2440*197mm | ||
Product Description

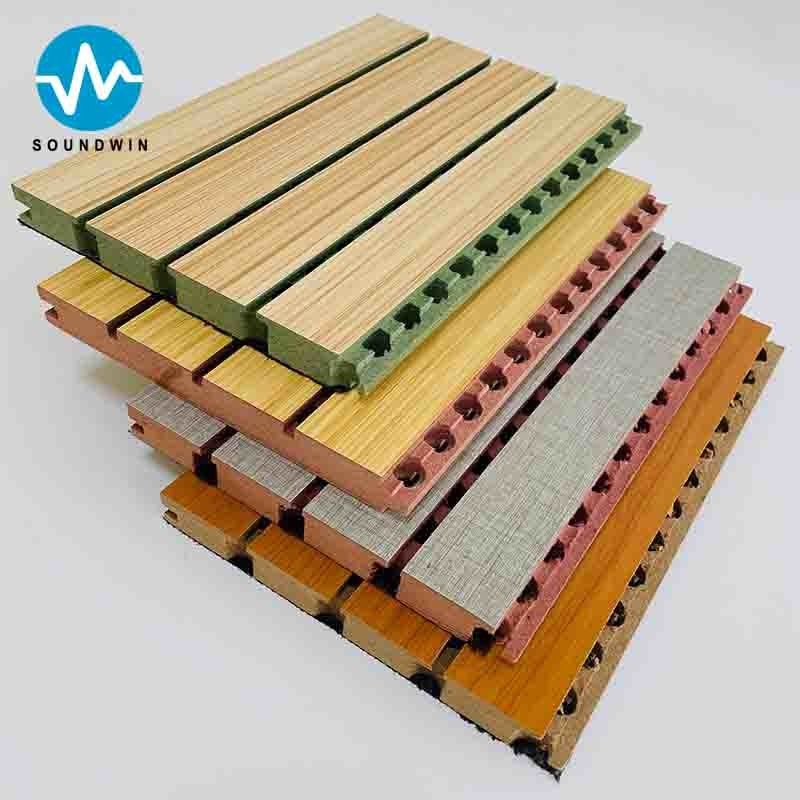

SW GROOVED ACOUSTIC PANEL-Grooved Wooden Acoustic Wall Cladding For Auditorium
SW GROOVED ACOUSTIC PANEL is a commonly used building acoustic sound absorbing material. It is a structure with slots on the front and holes on the back. It forms a resonance sound-absorbing structure with the eco friendly acoustic foam filled at the back and the back cavity formed toward the wall or the ceiling.
It has excellent sound absorption effect for low and medium and high frequencies, and is widely used in auditoriums, conference rooms, multi-function halls, gymnasiums, offices and other places.
NORMAL GROOVED ACOUSTIC PANEL SYSTEMS
Specification:
Standard Size: 2440mm*133mm
2440mm*197mm
Thickness: 12mm, 15mm, 18mm
Finish:
＊Melamine
＊High pressure laminate
＊Veneer
＊Paint
Main material:
＊ MDF
＊ MGO board
＊ Solid wood
Acoustic performane:
| Frequency (HZ) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC | Testing condition |
Sound absorption coefficient (α) | 0.30 | 0.60 | 0.85 | 0.76 | 0.65 | 0.72 | 0.72 | 13-3 50mm Acoustic foam 50mm Back cavitity |
Sound absorption coefficient (α) | 0.32 | 0.73 | 0.82 | 0.53 | 0.39 | 0.40 | 0.62 | 28-4 50mm Acoustic foam 50mm Back cavitity |
Fire rating:
＊National standard: Grade B1
＊Class A per ASTM-E84
＊B-s1 d0 per EN13501-1:2018
We sell to the countries oversea! We works abroad!
FAQ
Q1: What is the delivery time?
Normally the production time is within 7-15 days, but it also depends on the order qty and orders scheduling situation.
Q2: If OEM & ODM available?
Yes, it is available to provide OEM or ODM service.
Q3: Do you provide free samples?
We provide free samples with small size.
Q4: What is your payment term?
30% deposit, balance paid before goods loading for normal products.
50% deposit, balance paid before goods loading for customized products.
Q5: What is the MOQ?
100 m2.
Q6: Will you supply installation keels and accessaries for installation?
Yes, we can supply installation keels and accessaries for installation shipped together with the materials you ordered.
Q7: Do you provide installation guide?
Yes, we have skilled engineers with more than 20 years of construction experience, who can provide you installation guide.
Q8: Can you do the installation work in abroad?
Yes, we have professional teams that can do the installation work abroad. But normally only send one engineer to do the installation guide at site is more economic for the clients.
Soundwin Melamine Color Charts:
Soundwin Veneer Color Charts:
