High grade microperforated soundproofing panel solid wood create a comfortable environment for conventional hall
Product Details:
| Place of Origin: | China |
| Brand Name: | SOUNDWIN |
| Model Number: | SWMR-005 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 Square meters |
|---|---|
| Packaging Details: | Export cartons |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T,, Western Union, PayPal |
| Supply Ability: | 500000 square meters per year |
|
Detail Information |
|||
| Sound Absorption Coefficient: | 0.8 | Hole Pattern: | Micro Perforation |
|---|---|---|---|
| Surface Finish: | Melamine, HPL, Veneer, Painted | Edge Type: | Square |
| Thickness: | 12, 15,18mm | Material: | MDF |
| Fire Rating: | Class B1 | Hole Diameter: | 0.4mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm, 2mm |
| Hole Center Distance: | 2mm/4mm/8mm | Application: | Conference Room, Conventional Hall, Offices, Auditoriums, School |
| Installation Method: | Ceiling Or Wall Mounted | Size: | 1200x600mm, 600x600mm, 2400*1200mm |
Product Description

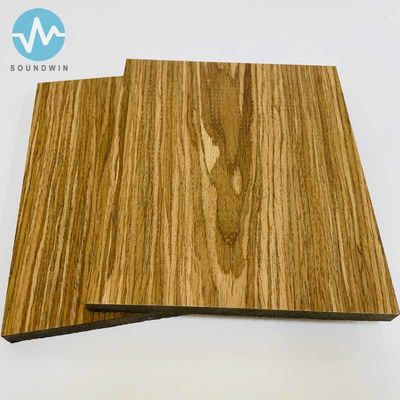

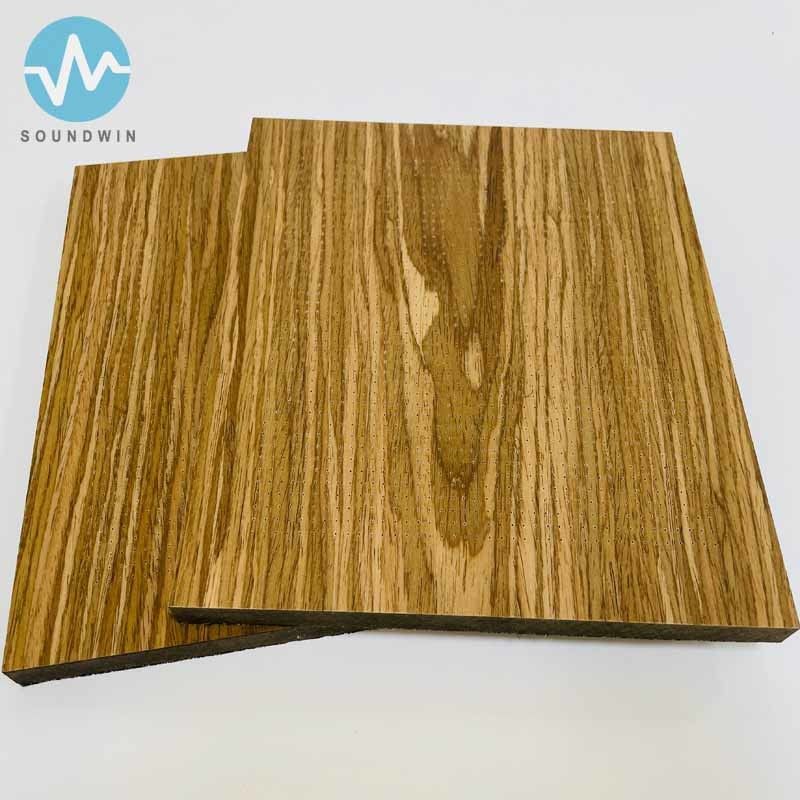

SW MICROPERFORATED PANEL- Invisible Acoustics Microperforatedacoustic Panel MDF Panel Trap The Noise For Public Spaces
Invisible acoustics for public space.

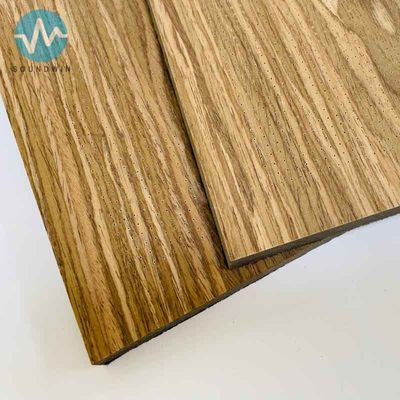

SW MICROPERFORATED ACOUSTIC PANEL is a kind of acoustic panels with a mass of tiny holes on the surface and big hols at the backside, which can trap the noise and reduce reverberation time in the room.
The small holes in 0.4-2mm make it invisible on the surface, so it is good for the space that needs invisible acoustic solution with good decoration.
It is made with fiberboard panel(MDF) or MGO board which are Eco friendly
and fire retardant.
When applied at site, filled with acoustic foam at the back of panel and leave 50mm back cavitity toward the wall or the ceiling, it form the resonant sound absorption structure with excellent sound absorption effect for low, medium and high frequencies. Different designs are available with different diameters of holes in different way of array.
It is widely used in auditoriums, conference rooms, multi-function halls, gymnasiums, offices and other places.
Specification:
Standard Size: 1200mm*600mm, 600mm*600mm, 2400mm*1200mm
Thickness: 12mm, 15mm, 18mm
Diameter of holes: 0.4mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm, 2mm
Finish:
＊Melamine
＊Veneer
＊HPL (high pressure laminate)
＊Painting
Color:
＊Various color selection
Acoustic performane:
| Frequency (HZ) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC | Testing condition |
|
Sound absorption coefficient (α) |
0.36 |
0.77 |
0.91 |
0.83 |
0.70 |
0.56 |
0.80 |
2mm Microperforated Panel 150mm Back cavitity |
Fire rating:
＊Grade B1 per National standard
＊Class A per ASTM-E84
＊B-s1 d0 per EN13501-1:2018
FAQ
Q1: What is the delivery time?
Normally the production time is within 10-15 days, but it also depends on the order qty and orders scheduling situation.
Q2: If OEM & ODM available?
Yes, it is available to provide OEM or ODM service.
Q3: Do you provide free samples?
We provide free samples with small size.
Q4: What is your payment term?
30% deposit, balance paid before goods loading for normal products.
50% deposit, balance paid before goods loading for customized products.
Q5: What is the MOQ?
100 m2.
Q6: Will you supply installation keels and accessaries for installation?
Yes, we can supply installation keels and accessaries for installation shipped together with the materials you ordered.
Q7: Do you provide installation guide?
Yes, we have skilled engineers with more than 20 years of construction experience, who can provide you installation guide.
Q8: Can you do the installation work at abroad?
Yes, we have professional teams that can do the installation work abroad.
